Why Most Designers Prefer Aluminum Prototyping
As a designer, there is nothing worse than dealing with prototyping costs. Despite what the internet claims, 3D printing in plastic is not really an alternative for testing functionality. I simply cannot test a 3D-printed plastic cup when designing a thermos; the heat-transfer data just is not there.

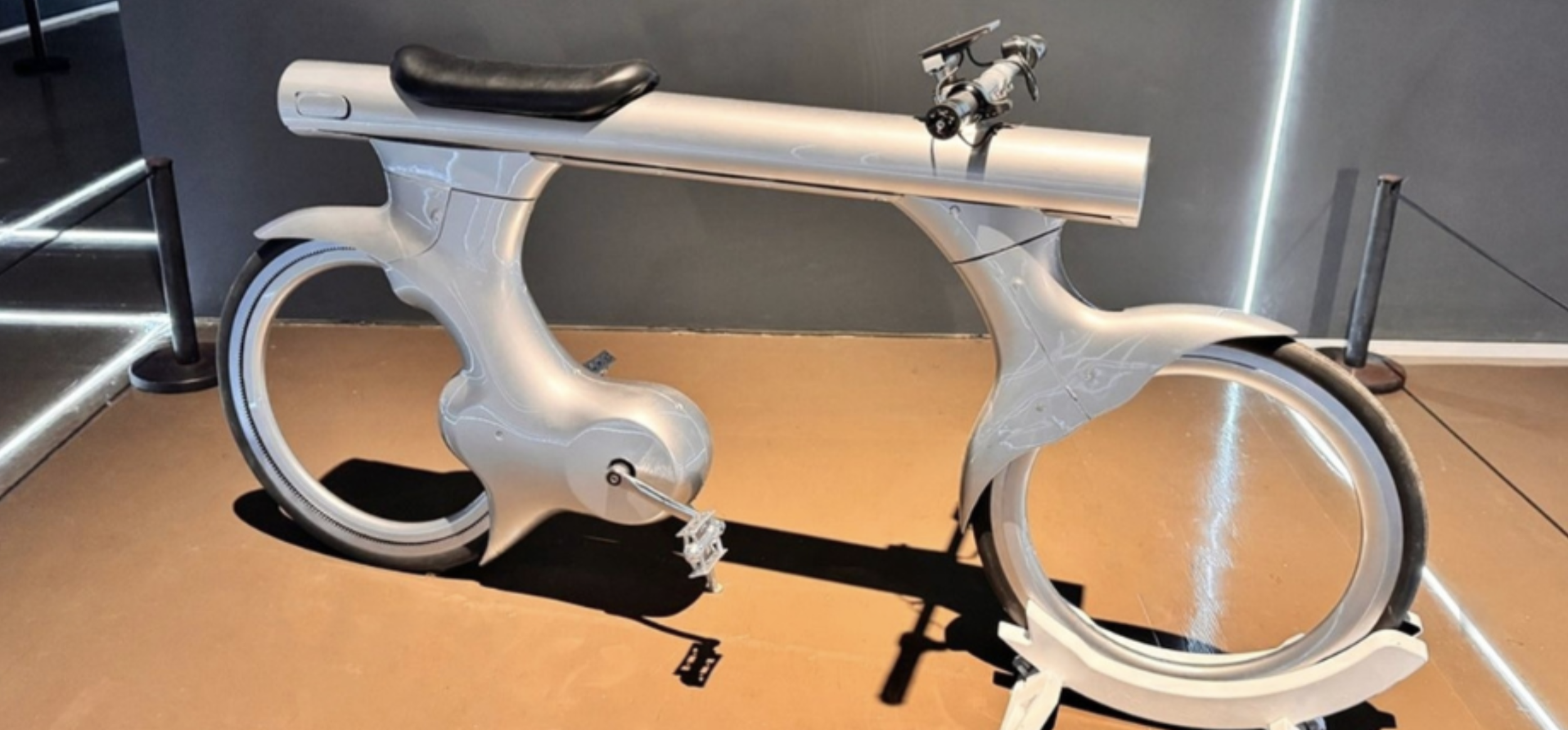

Figure 1: Aluminum Bike Prototype on display in China Art Museum, Shanghai.
So I went on a Wiki frenzy about materials and discovered aluminum may very well be a good option. It has structural rigidity, is ⅓ the weight of steel (so I can get it shipped), and has some great electrical and heat properties.
Here is why I think there is so much metal around our designs, from interior decor to coffee cups and even drinking water cans. Yes, that’s a thing now!
Iterate Faster Without Blowing the Budget

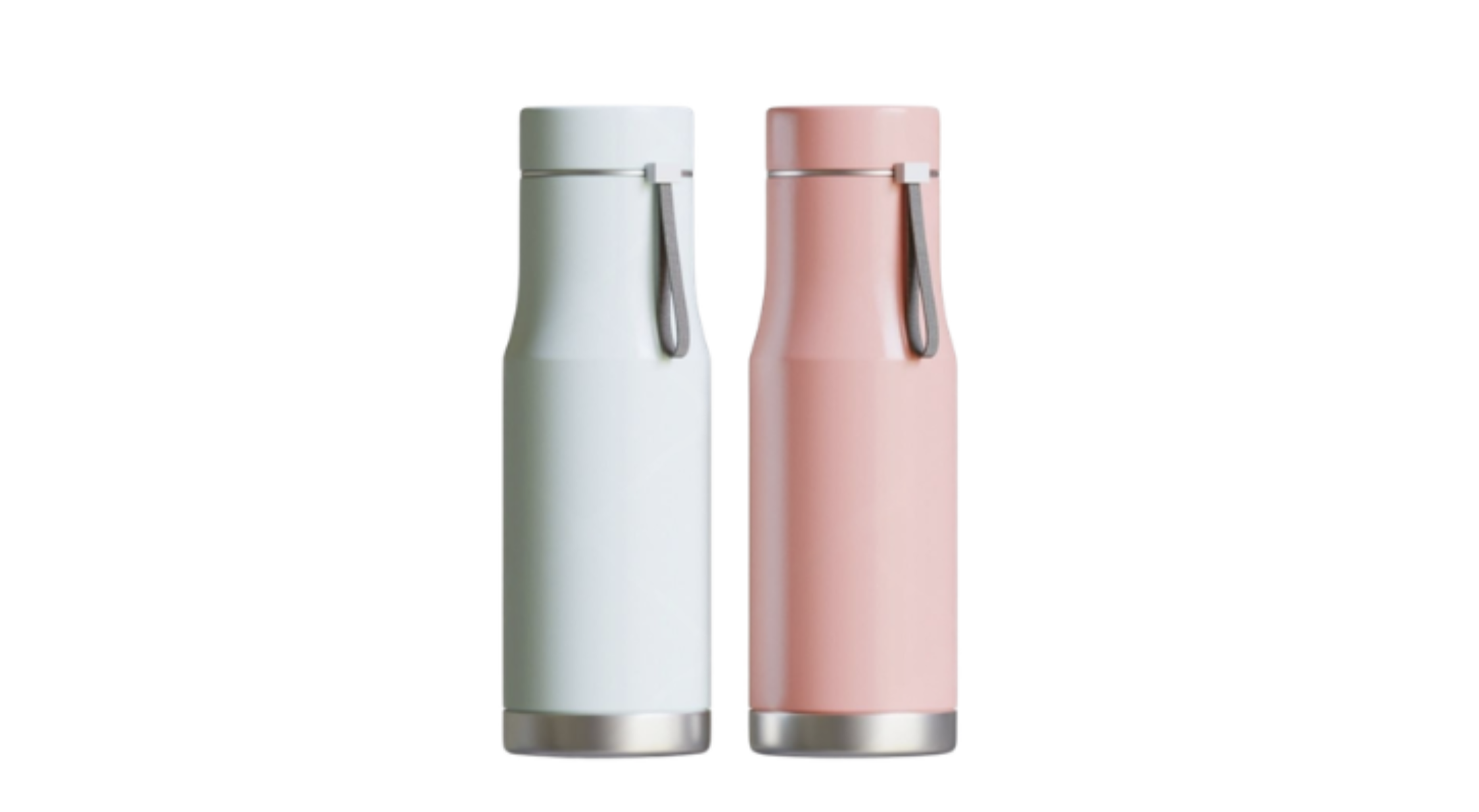

Figure 2: Thermal Sport Water Bottle 3D Rendering.
A designed part of your business evolves through multiple rounds of refinement from the prototype to the final product. The prototype reveals your design’s shortcomings. The second one helps you improve performance, while the final refinement delivers breakthroughs. You can machine aluminum to keep this cycle moving quickly by making design changes more quickly than with other materials.
Machine aluminum is efficient. It has a lower hardness. So, cutting tools experience less resistance than with harder metals such as steel or titanium. As a result of higher spindle speeds and feed rates, the production time reduces. The following are several advantages of machining aluminum for your budget.
Machining aluminum is 3 to 5 times faster than machining steel. Its machining speed is considerably higher than that of titanium.
The cutting force required for aluminum is 30% that of steel. Therefore, you can machine complex designs with reduced stress.
The tool wear of aluminum is 30% to 50% lower than that of harder metals, allowing extended tool lifespans while reducing tooling expenses during prototyping.
You can maintain dimensional accuracy in aluminum prototypes while minimizing thermal distortion because aluminum has higher thermal conductivity than other metals. Heat remains concentrated at the cutting edge of titanium parts due to its lower thermal conductivity, while steel falls in between. Therefore, you may be required to apply slower machining speeds, specialized tooling, and greater process control for those materials.
The real cost of one design iteration: aluminum vs. steel or titanium
The cost of designing prototypes is not only the price of raw metal. As a designer, you should consider the cost of repetition, which is driven by machining time, until the final prototype is confirmed.
Aluminum has its advantages for this reason. The finished part is cheaper, although aluminum stock is more expensive per pound than mild steel. The following are the two key ideas to stand out.
Cycle time: Billing of machining shops is based on the hour or minute. Using aluminum reduces machining time by 3 to 5 times, lowering the overall cost of each part.
Choosing material based on design complexity: Aluminum can be machined more easily than harder metals such as titanium and steel, making it a better choice for more complex designs. For electric vehicle brackets, you can reduce the cost of each part by around 60% while delivering the same functional performance by switching from titanium to aluminum.
Prototypes That Behave Like the Finished Product

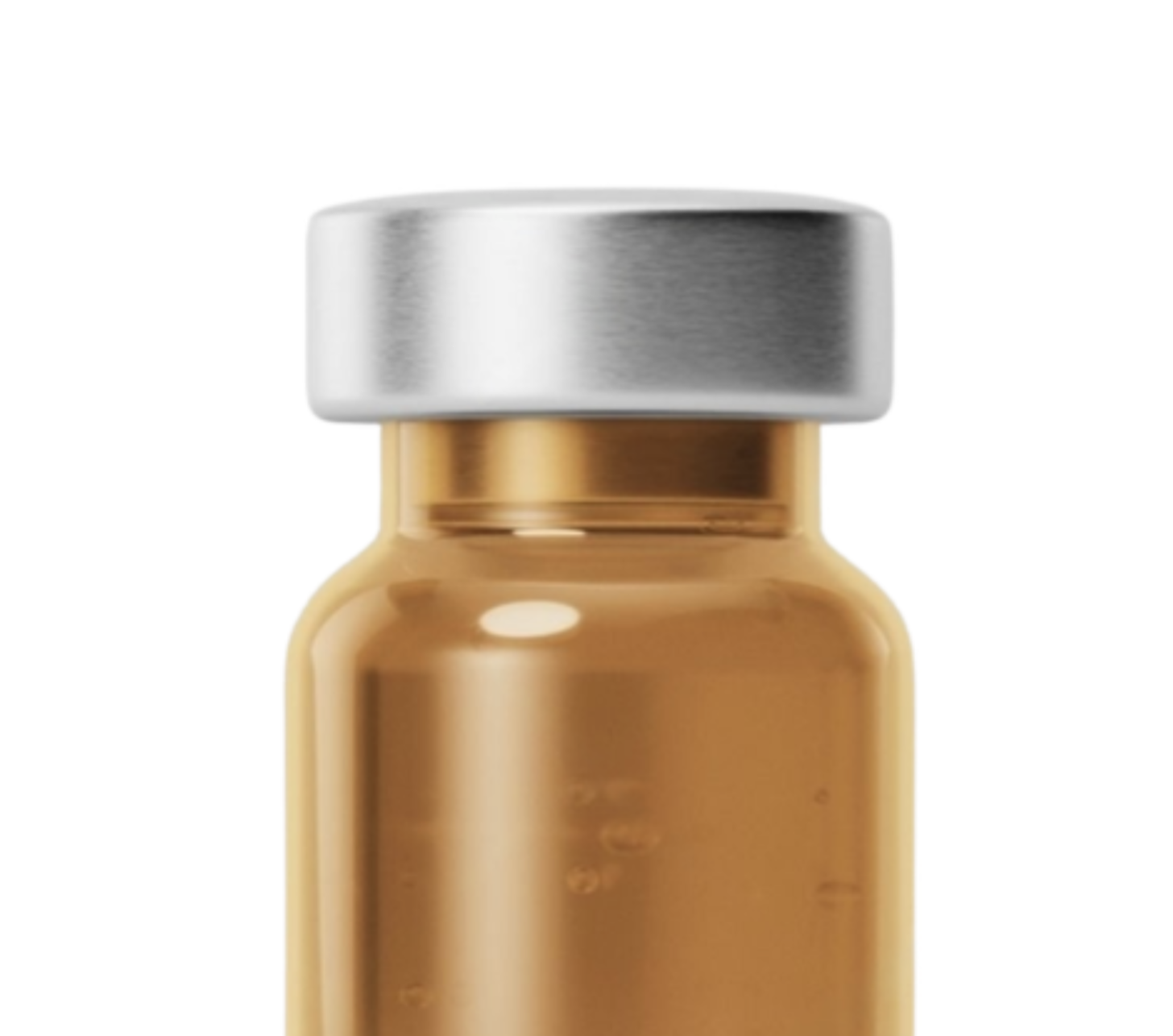

Figure 3: 3D prototype of a blank bottle.
Although a 3D-printed part looks like the part, you cannot confirm its performance under the required conditions. But an aluminum prototype is the part that is machined from the same alloy intended for production.
Strength-to-weight
Aluminum provides you with strong parts without being heavy. So, aluminum products are solid, high-quality, and substantial parts that are one-third as dense as steel. Furthermore, you may obtain incredibly strong parts made from alloyed metal that actually carry the load.
| Material | Density (g/cm3) |
For Designers |
|---|---|---|
| Aluminum (6061-T6) | 2.70 | Yield strength is approximately 276 MPa (40 ksi). The metal is a reliable and general-purpose workhorse alloy. |
| Aluminum (7075-T6) | 2.81 | Tensile strength is approximately 570 MPa (83 ksi). Gets close to steel in strength while remaining around one-third the weight. |
| Titanium (Ti-6Al-4V) | 4.50 | Extremely strong, but machining is slow and expensive. |
| Steel (mild) | 7.85 | Strong, available, and cheap, though machining is slow as the material is heavy. |
Thermal and electrical performance
You can test your design's ability to manage heat or carry current with an aluminum prototype, as aluminum has a thermal conductivity that is in a different league from steel's.
Aluminum (6061-T6) conducts heat 10 times better than stainless steel, with a thermal conductivity of about 167 W/(m · K). This is why aluminum enclosures, such as heat sinks and cooling plates, stay cooler than steel under the same operating conditions. "Understanding 6061 T6" highlights that this alloy's exceptional thermal conductivity, combined with its corrosion resistance and capacity to anodize to a polished finish, makes it the go-to material for both functional prototyping and presentation-quality parts” [2].
Under the IACS scale, the electrical conductivity of aluminum is 40% of copper’s conductivity. So, you can use aluminum for grounding paths and EMI-shielding enclosures.
Real-world performance simulation

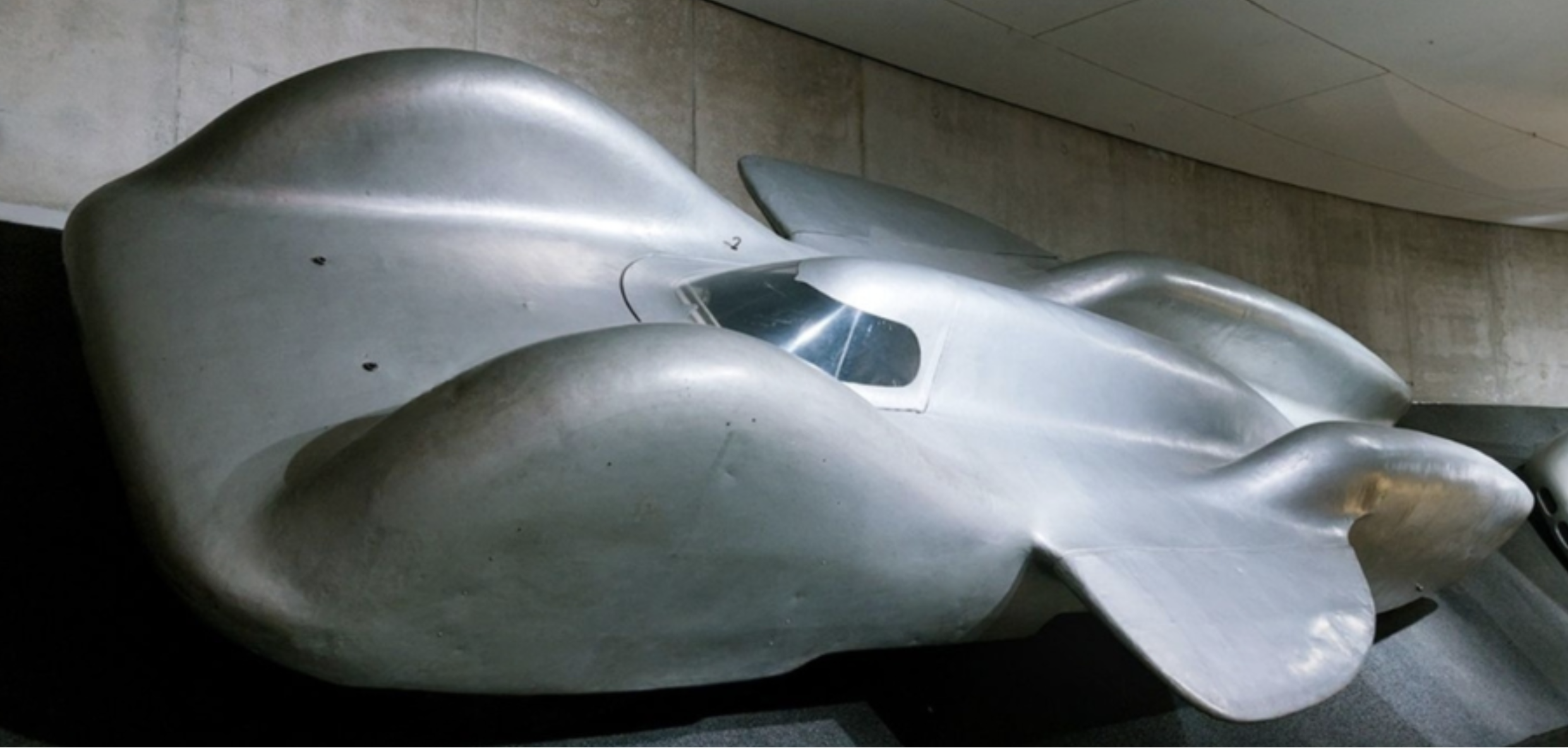

Figure 4: Mercedes-Benz T 80 land speed record car in Stuttgart, Germany.
This is the main reason designers love aluminum. You can run a real-world validation before committing to expensive, specialized tooling. So, you can check for the following parameters of a machined aluminum prototype both in hand and on the bench:
Under vibration from nearby motors, whether thin walls flex or ring.
After repeated assembly, whether a threaded hole strips or maintains torque.
As predicted by the simulation, whether heat is dissipated effectively.
Whether fasteners, press-fits, and mating parts seat as intended by the drawing.
So, catching any of the above defects on a prototype that costs around $200 can minimize expenses from failures during full-scale production.
Design Freedom
You have boundaries for drawing the design based on the material you choose. Suppose you choose aluminum, your options narrow. So, the compromises are fewer between the drawing and the actual part.
Machinability and formability
Machined aluminum parts require little finishing. The reason is that you can machine aluminum easily and predictably, as it tolerates complex designs. 6061 aluminum can support heat-sink fins with aspect ratios up to 10:1 because producing dense cooling structures would be more difficult with harder materials.
Round cutting tools govern machining. The following are a few design principles for you to follow:
Inside corners cannot be perfectly sharp: Rather than fighting the process, draw the design with the radius end mills require.
Respect wall thickness: It is beneficial to increase thickness where possible, as thin sections tend to chatter or deflect under cutting forces.
Mind deep, narrow pockets: Machining deep, narrow pockets becomes difficult quickly because stiffness and precision decrease as the tool reach increases.
Do not over-specify tolerances: Standard tolerances of ±0.1 mm are cheap. So, do not design for unnecessarily tight tolerances, such as ±0.01 mm, which are expensive.
Keep in mind that the formability depends highly on the choice of alloy. For your information, 660-T6 alloy is excellent for machining but tends to crack at tight bend radii. So, 5052 is preferred as a soft alloy for designs that require forming processes such as bending and deep drawing.
Choosing the Right Aluminum Alloy for Your Prototype
Choosing the most suitable alloy is the first step you may go wrong. As PartMFG explains in "Best Aluminum Alloy for Machining," the selection of the right alloy depends on three essential factors: machinability, mechanical strength, and specific operational requirements, and not all aluminum alloys are created equal [2].
| Alloy | Strength | Best at | Watch out for |
|---|---|---|---|
| 6061 -T6 | Moderate (~45 ksi) | This is the all-rounder of the family. This can be machined cleanly, corrosion resistant, anodizes perfectly, cheap, and available, making it the standard for prototypes, fixtures, and structural brackets | This is not the strongest of the family. So, it can crack if bent tightly. |
| 7075-T6 | High (~83 ksi) | The strength-to-weight ratio is near that of steel. Suitable for aerospace and high-stress applications | Expensive. You should not weld it, and you should not use harder tools. |
| 2024-T3 | High (~70 ksi) | Fatigue resistance is excellent. | Corrosion resistance is poor. So, needs a coating. |
| 5052-H32 | Lower (~33 ksi) | Suitable for bending and forming. Excellent corrosion resistance. So, suitable for marine applications | Machining is not easy because it gums up with soft material. |
If you remember only one grade of this family, then make it this one. You can definitely use 6061-T6 as the default, unless you have a clear reason to move away from it.
Sustainability Angle Designers Increasingly Care About
According to Wikipedia, recycling aluminum requires only approximately 75% of all aluminum ever produced remains in active use today [3].
It is endlessly recyclable. Repeatedly melting and remaking a new part without losing quality has become easier with aluminum.
Recycling aluminum saves about 95% of the energy required to produce primary aluminum from raw ore, while reducing the emission of greenhouse gases.
About 75% of all the aluminum ever produced is still in use today because it circulates through the economy due to recyclability rather than sitting in a landfill.
So, aluminum's recyclability offers practical benefits for prototyping. You can collect and recycle machining chips and rejected prototypes without discarding them as waste. So, the real cost of prototyping decreases with the use of aluminum because recyclable aluminum makes experimental and multiple design iterations less material-intensive.
Is an Aluminum Prototype Right for Your Design?
Aluminum is not always the right material for your design. So, knowing when aluminum is the right choice and when something else is is important.
Aluminum is the perfect choice under the following conditions:
When you need a functional prototype that can handle load, heat, and repeated assembly.
When you need quick, affordable iteration cycles.
When there is a need for a realistic preview of production performance, as aluminum is the production material
When the prototype is needed for presentation, anodized aluminum parts look like finished products rather than rough mock-ups.
Aluminum is not the perfect choice under the following conditions:
You can choose a cheap plastic print when you are only checking form and fit.
You need a part with extreme strength or high-temperature performance, which leaves only titanium or steel as your choices, despite their machining costs.
You should choose sheet metals and formable alloys when the design relies on tight bends and folds.
Casting or injection molding can be more cost-effective than machining when you need thousands of identical parts.
Final Word
Aluminum is not the strongest, lightest, or cheapest material. But it sits comfortably between idea and reality, performing well while remaining easy to machine, finish, and handle. Thus, it has become the default choice for many designers.
References
[1] "Understanding 6061 T6 Aluminum." PartMFG, www.partmfg.com/6061-t6-aluminum/. Accessed 22 June 2026.
[2] "Best Aluminum Alloy for Machining." PartMFG, www.partmfg.com/best-aluminum-alloy-for-machining/. Accessed 22 June 2026.
[3] "Aluminium Recycling." Wikipedia, Wikimedia Foundation, en.wikipedia.org/wiki/Aluminium_recycling. Accessed 22 June 2026.
