Good Design: Mission Belt v Groove Belt
One of the hallmarks of an effective tool is its simplicity. The belt has been around for thousands of years as a simple mechanism to hold things, be it equipment or clothes. Throughout its history, it has not seen much change, but they do have a storied history. In the United States, the belt became vastly popular after it was mandated for soldiers during World War 1 [1]. Though it has changed little since its inception, innovations from Mission Belt and Groove Belt are reforming the industry standard.
The Mission Belt - John
The Mission Belt employs a relatively new way of latching the two ends of a belt together. Instead of the traditional buckle with a prong that pops through the holes of a belt, a Mission belt uses a ratchet-style mechanism. Thus, the ratcheting mechanism isn’t “new,” but when applied to a belt that people wear, it is.
The most common ratcheting system one might see in public is on trucks, where the load on the trailer bed might be variable, and thus a user may want to tighten the strap (or belt) to the appropriate size. This would be a major problem if the truck straps only had discrete points for tying off (like most belts do). [See our good design article on NRS straps in 2022]

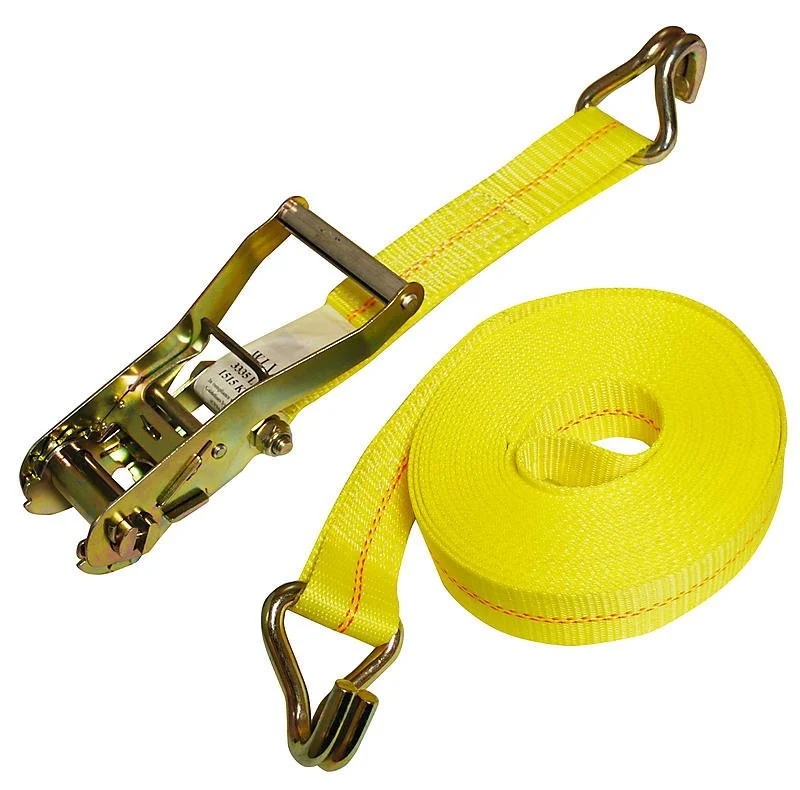

Figure 1: Traditional ratchet system for tying down loads on vehicles, etc [2].
Some of our belts have a hole every 1.5 inches (3.8 cm). Since body weights can fluctuate, I tend to use three of the holes in the last 12 months. Of course, this means that on most days, my belt was either too loose or too tight. After all, what are the chances that my waist circumference matched one of those exact hole positions on my belt?

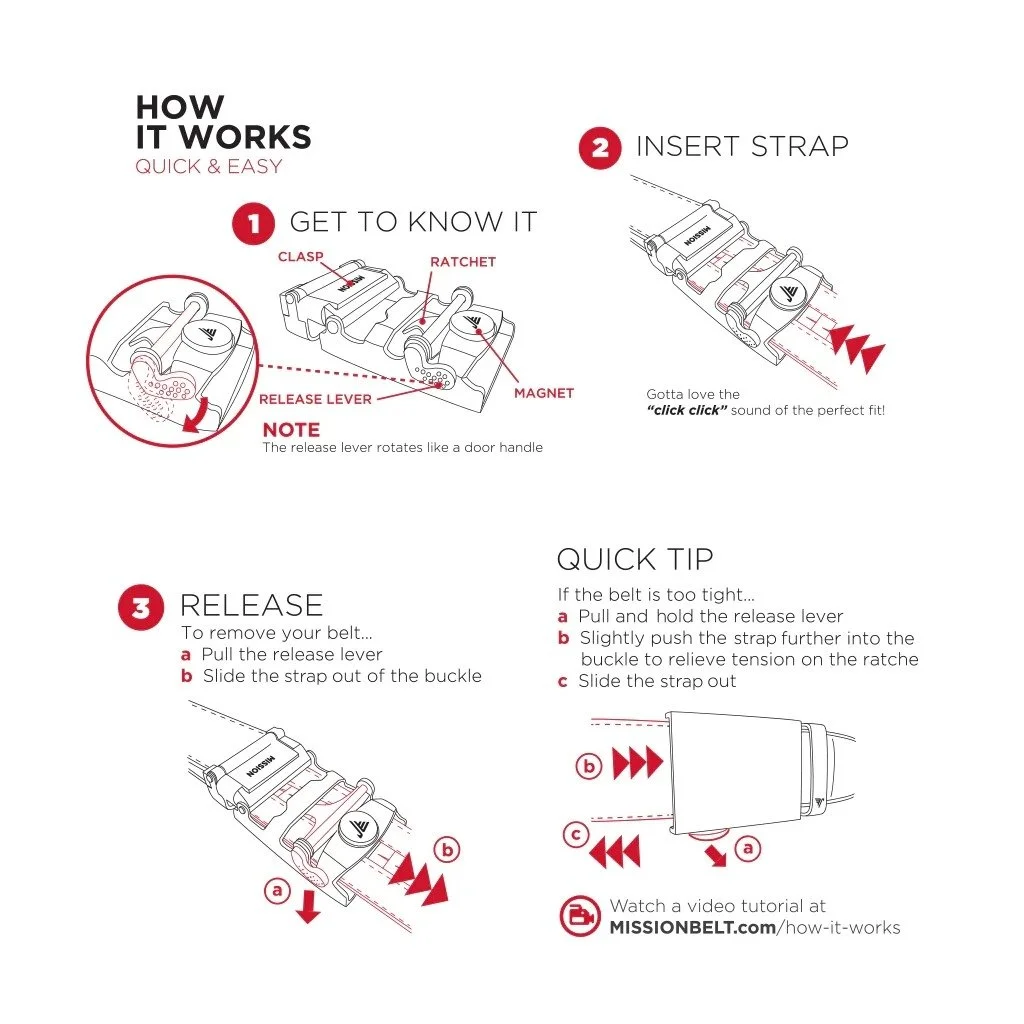

Figure 2: A diagram of the Mission Belt buckling system [3].
Enter the Mission Belt and their ratchet system. The position of the locking mechanism can be locked in with a resolution of every 5 or 6 mm. So, a close to perfect fit is obtained every time I put it on. With my other belts, I have to always decide to either go up or down to the nearest belt hole.
Instead of holes, there is a ratched strip or track with small grooves spaced 5-6 mm apart for about 20 cm on the backside of the belt. As the belt slips through the buckle, a spring-loaded latch will catch on the grooves and click in place. If the belt is pushed even more, the angle of the track grooves will allow the latch to reposition itself one more notch tighter, but won’t allow the belt to slip the other way. (A good analogy is the clicking of the ratchet and pawl system so that a roller coaster can’t fall back down during the climbing phase of the initial ascent). To release the belt, a small lever needs to be engaged to release the latch, and then the section with the track can be reversed. It’s simple, elegant, and much more satisfying.

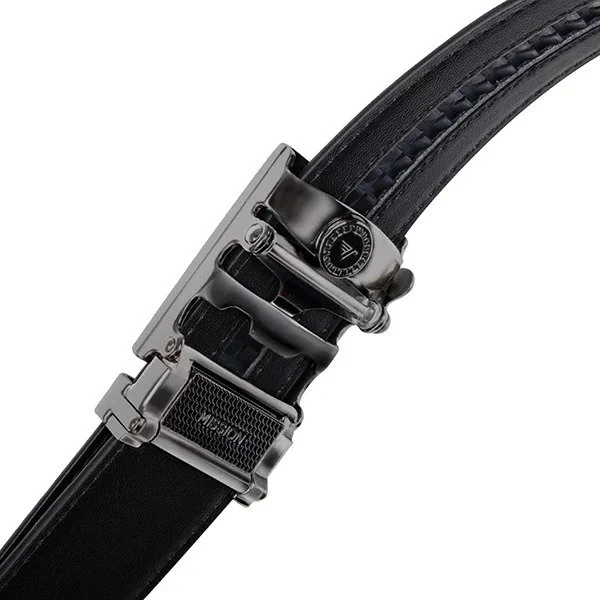

Figure 3: The ratcheted track is shown at the top right down the middle of the back side of the belt. The latch part is partially hidden by the support bar in the middle and connected to two revolute joints on each side [4].
Beyond the superior fit, the 'no-hole' design offers several other advantages. Since these belts are advertised as “no-hole” belts, they can look a lot better. People do not always like to have a bunch of holes sitting there (that are never used), advertising one’s waistline to the world. Regarding product durability, eliminating holes significantly reduces localized stress, minimizing the risk of cracks and material fatigue. (Maybe I just need to replace my belts more often.) Lastly, the automatic tightening and size adjustment that can happen anywhere with minimal effort is attractive. After a big meal, I’m not one to require loosening my belt one full hole, but I have slightly expanded my mission belt one groove size. I’ve also done the reverse while hiking. Maybe I was indeed burning off some water weight.

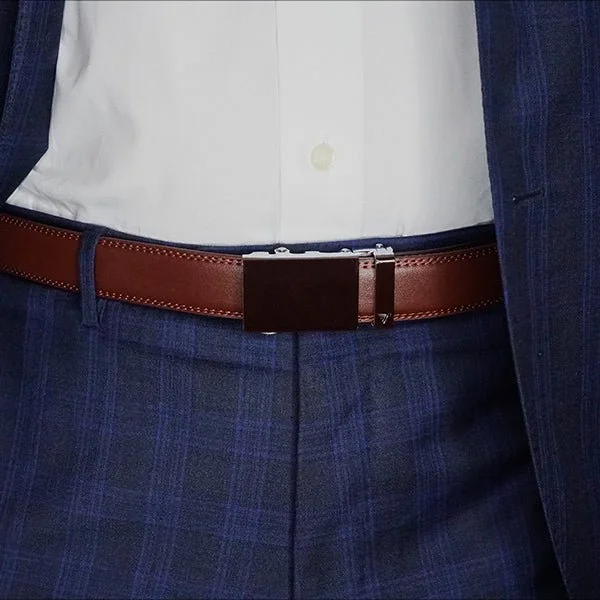

Figure 4: The mission belt is considered a “no-holes” belt. It looks more professional than traditional belts without degraded holes that can sometimes reduce the aesthetic [4].
I suppose, after gaining enough weight, one might run out of the ratchet track on a mission belt and max it out, causing it to no longer function. But belts with holes have that same limitation. Furthermore, it would be a good signal for me to work on my health a little more if my waist line expanded 20 cm too quickly.
Finally, I cannot ignore that the brand name, “Mission,” refers to the company's broader purpose. If you visit the Mission Belt website, you can read about Luis from Panama, a friend of the founders. I will defer sharing the entire story here, but the founders promise to donate one dollar from every belt sold towards fighting hunger and poverty. That might not make a difference to most customers, but it might make a difference to some people around the world. Regardless of whether Mission Belt sells more because of that promise or not, it is a good thing to establish no matter what.
The Groove Belt - Dylan
Groove Belts are fastened by neodymium magnets in the belt buckle, held together with a no-slip locking bar. The belt material varies from premium, stretchy leather to synthetic webbing [5]. Besides the quality material, these belts are distinguished by their practicality: once the belt is sized to one’s liking, it clips back into the same place every time. Without a typical pin system, there are no deformities introduced into the leather over time. The Max Leather belt even features a micro-adjustment mechanism.

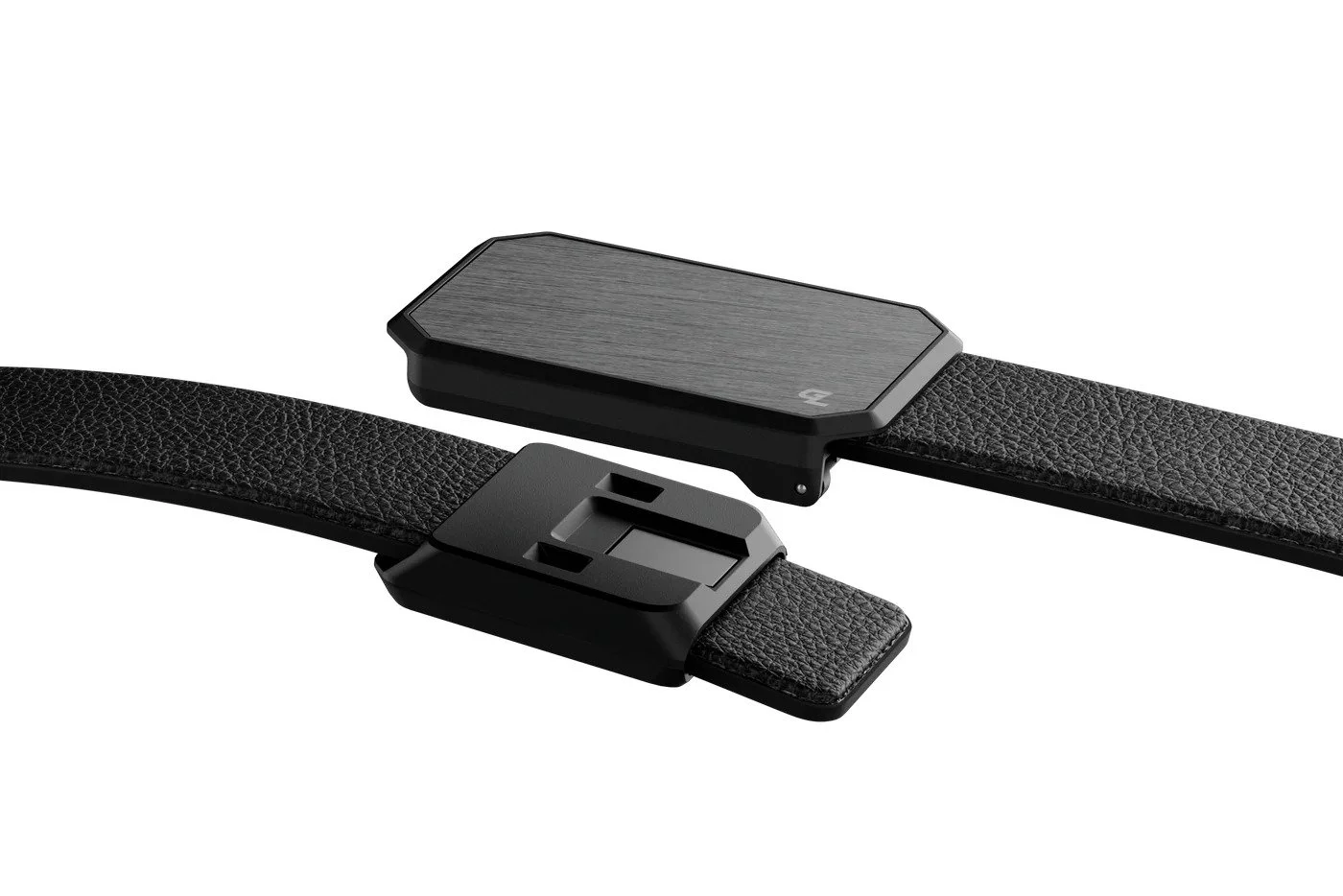

Figure 5: The Max Leather Groove Belt and its locking mechanism [6].
The buckling system cannot be more simple or secure on the Groove Belt. In my experience, the belt has never unfastened by accident, but slides smoothly with user input. When clasped, it fits tightly and does not rattle.
Figure 6: A back view of a fastened OG Groove Belt [7].
The buckle and belt itself are nondescript, suiting professional settings and outdoor recreation. Excess belt material can be removed or tucked behind the belt, rather than dangling awkwardly past the buckle. The belt is comfortable, functional, and minimalistic.

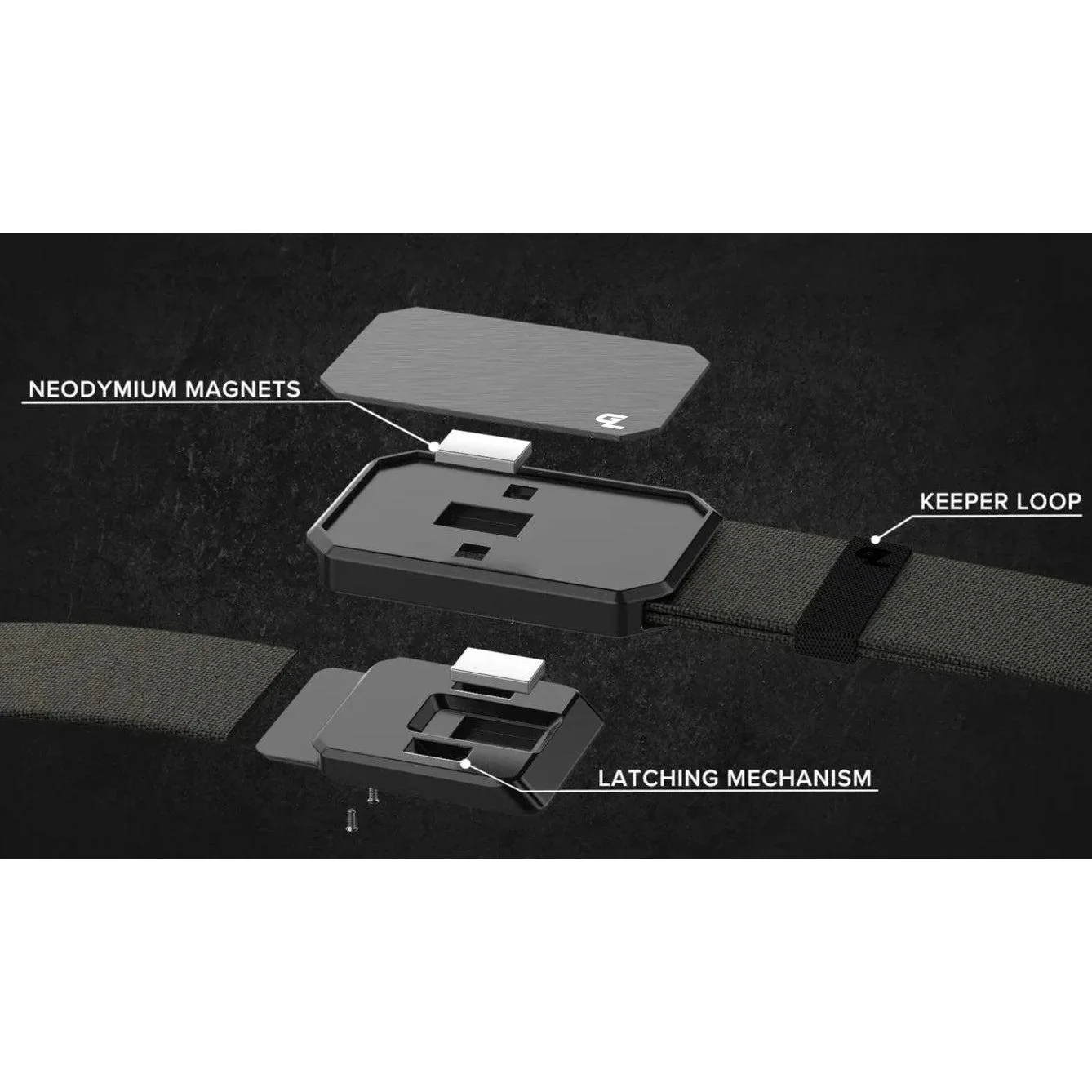

Figure 7: An expanded view of the buckle and its pieces [8].
The only issue that I have identified in my use of the belt is the somewhat significant size of the buckle, and it can require some maneuvering to slip the larger buckle piece past smaller belt loops.

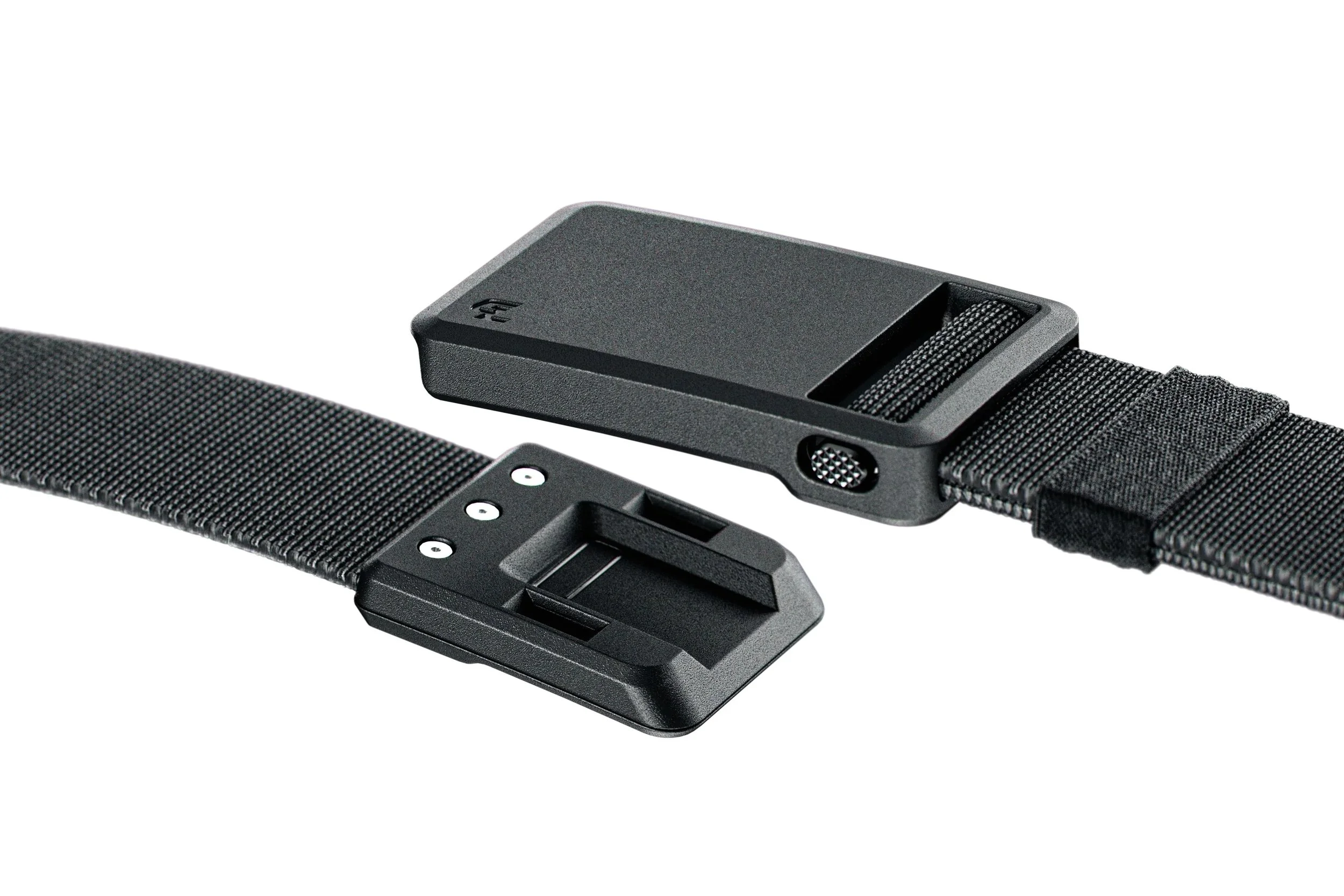

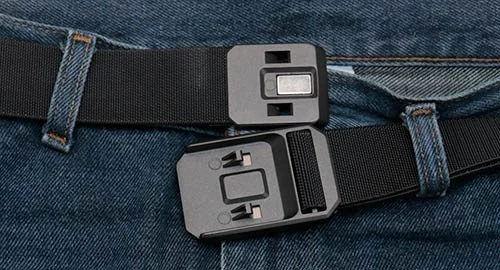

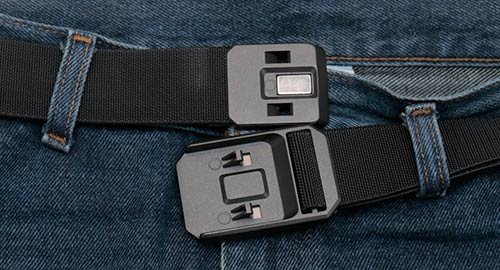

Figure 8: The two pieces of the buckle with the buckling mechanism displayed. The larger piece of the buckle (below) is more difficult to slip past belt loops [9].
Magnets are expensive, and the price of the belts has continued to grow with demand. Yet, the belts are made with incredibly durable material and have a dedicated warranty. In all, Groove Belts manage to simplify the buckling mechanism and magnify the versatility of the standard belt.
Comparison - John and Dylan
To determine which belt of the two was the better design, we swapped belts for several days. Though we could appreciate the design of each other’s belt, we both found ourselves preferring our own belt. The Mission Belt has a more classic look, adapts better to changes in waist size, and functions more similarly to a regular belt, whereas the Groove Belt is more rugged, preserves the user's preferred fit, and simplifies the buckling system. As mentioned, the main disadvantage of the Groove Belt was that the outer half of the buckle had to be fed through the pants’ loops. One of us had it catch a few times on a pair of pants with smaller-than-average loops. That’s not a problem for the Mission Belt, which has a smooth profile for the entire length.
The Groove Belt is the sort of belt that one can take hiking or to work. Although it depends on the model, the belt strap material is more durable and resistant to wear and tear. Its buckle, while not loud in its design, is not the usual business-casual aesthetic. The Mission Belt, meanwhile, takes the standard aesthetic and feel and improves on the buckling system and removes the obnoxious and insufficient holes that are ubiquitous to a standard belt. The Groove Belt also has a physical reminder if you do put on uninvited weight, since the magnetic buckle stays at a consistent length, which the Mission Belt can obscure through its near continuous settings.
If you are looking for a functional belt that is perfectly appropriate for formal situations, the Mission Belt is the belt for you. However, if you are looking for versatility and simplicity in a daily belt (and tend to not fluctuate in weight as much), the Groove Belt is unmatched.
References
[1] “The Sam Browne Belt.” Military Trader.
[2] 2" x 30' Custom USA Ratchet Strap with Wire Hooks. Ratchet Straps USA, 2024, www.ratchetstraps.com/2-x-30-usa-made-ratchet-strap-with-wire-hooks.
[3] “How It Works.” Mission Belt, missionbelt.com/pages/how-mission-belt-works. Accessed 20 Oct. 2025.
[4] Mission Belt. missionbelt.com/. Accessed 20 Oct. 2025.
[5] Groove Life. groovelife.com/. Accessed 20 Oct. 2025.
[6] “Groove Belt Max Leather - Black.” Groove Life, www.groovelife.com/products/groove-belt-max-leather-black.
[7] “Rak Buck Small Logo Groove Life™ Stretch Belt at RakAdx.” RakAdx, rakadx.com/products/rak-buck-small-logo-groove-life-stretch-belt-gear-groovelife.
[8] McCoy, M. Curtis. “Groove Life Belt / Groove Belt™ - The Best Tactical Belts for EDC in 2021.” GunMag Warehouse, mcurtismccoy.com/groove-belt/.
[9] Brian. “Groove Life Groove Belt Review.” Industry Outsider, 5 Jan. 2021, industryoutsider.com/groove-belt-review/.
To cite this article:
Salmon, John and Dylan Conover. “Good Design: Mission Belt v Groove Belt.” The BYU Design Review, 20 October 2025, https://www.designreview.byu.edu/collections/good-design-mission-belt-v-groove-belt.
